Forensic Lab Container

Forensic Lab Container

Purposes: Investigation
Capacity: NA

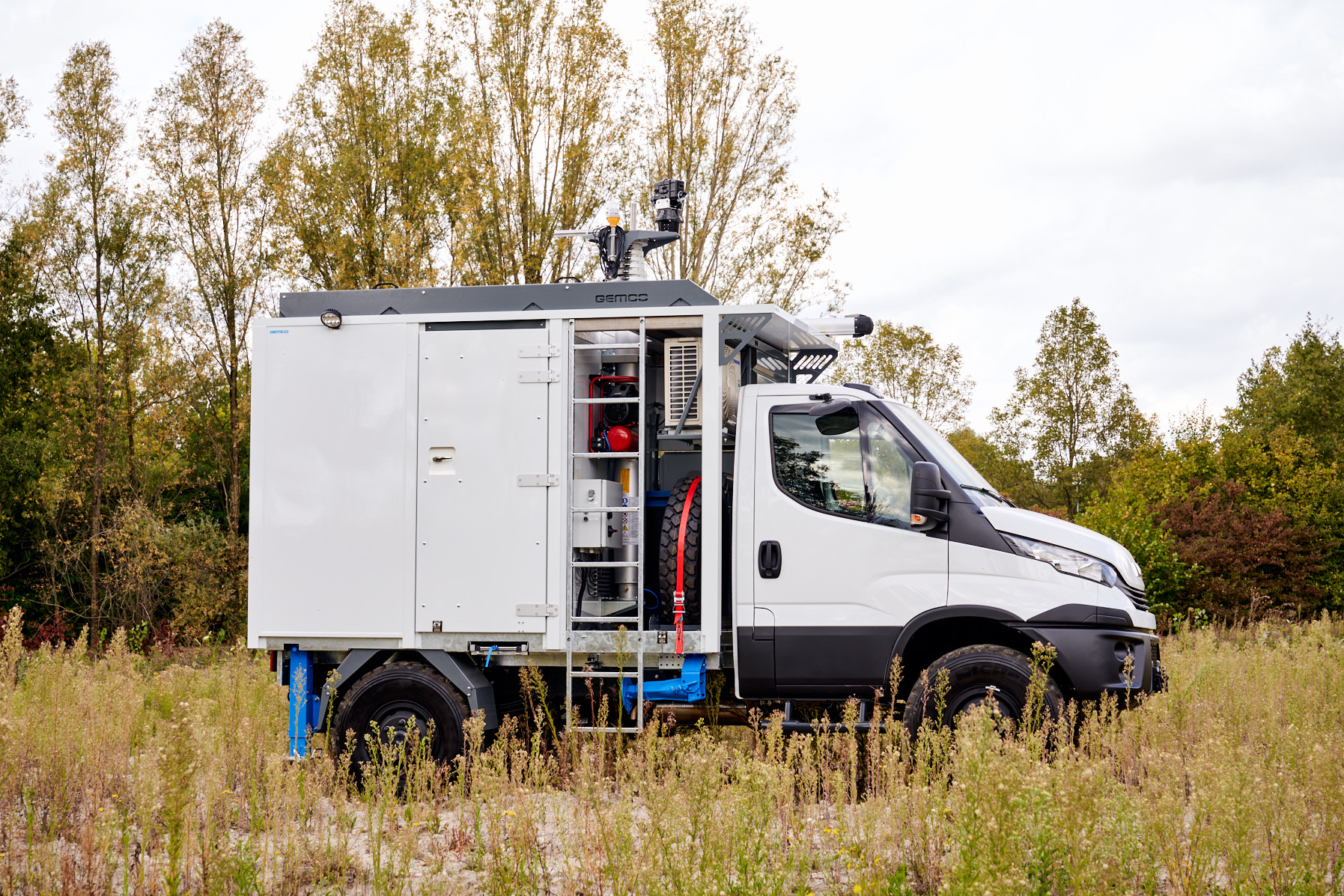

Mobile lab for crime scene investigation purposes

  • once deployed to a crime scene
  • the laboratory can go straight into operation
  • It is designed to carry all of the necessary equipment that
  • allows technicians to conduct extensive evidence collection
  • documentation and
  • processing
  • avoiding the possibility of contamination
  • during transportation to central laboratories

Mast

  • lightweight construction mast
  • quick to erect in less then 45 minutes
  • no extra equipment required
  • resistant to extreme wind forces
  • mast heights from 20m up to 30m

Wheel drive trailer basis

  • 2-wheel
  • 4-wheel
  • 6-wheel

C. van Gemert

Technical data

Chassis

Weight rating: 15 t (GVW)
Wheelbase: 3.915 mm
No. of wheels: 4+1
Tires: 14.00R20
Drive: 4 x 2 / 4 x 4 / 6 x 4 / 6 x 6

Main dimensions vehicle

Length: 7.750 mm
Width: 2.550 mm
Height: 4.050 mm

Dimensions body

Length: 5.100 mm
Width: 2.550 mm
Height: 2.050 mm
Door (WxH): 1.000 x 1.950 mm

Body

  • Full steel body in sheet pile construction specially designed for this purpose.
  • The body is isolated especially for use in tropic as well as artic environments.

Air conditioner

Type: Split
Cooling power: 7,6 kW
Heating power: 7,3 kW
Environment: -15o ~ +50o
Voltage: 230V

Generator

Power: 15 KVA
Phase: 3
Voltage: 400/230 V
Fuel tank: 1000L

Telescopic Antenna Mast

Material: High grade Aluminium
Height available: 20m and 30m
Wind load area: 2,5 m2 (standard)
Vertical top-load: 300 KG
Rotation top <1o: 38 m/s
Max.wind speed: 45 m/s (limit)
Mast erection: Automatic

Options

  • VSAT system with 1.8m or 2.4m reflector
  • MW dish rotators (remote controlled)
  • 230VAC / 48VDC electrical systems
  • 48VDC battery back-up systems
  • 30KVA generator
  • GPS System / Vehicle Tracking System
  • Panel Antenna brackets
  • Remote CCTV systems
  • Remote Fire / Smoke Alarm systems
  • 4×4 drive for Desert purposes
  • 6×6 drive for Remote areas
